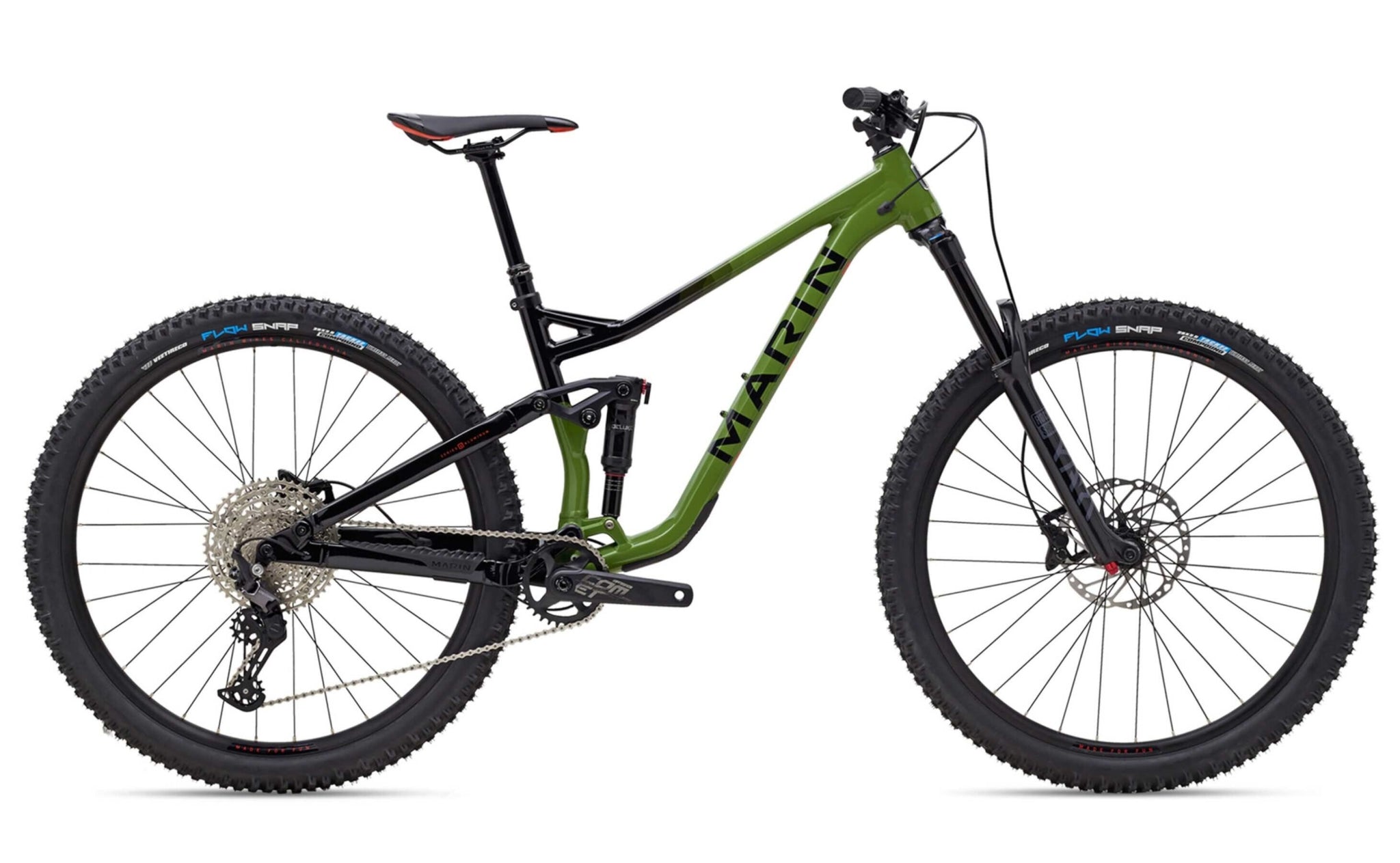

Marin Alpine Trail 7
BIG ALL-MOUNTAIN DAYS WHERE TRAVEL AND GEOMETRY MATTER MOST
Big mountains, epic passes, and all day ripping descents. If you live for the alpine adventure and gravity-fueled downhills, look no further than the Alpine Trail series. Updated for 2021, and built around the longest travel version of our critically acclaimed MultiTrac platform with progressive slack headtube/steep seattube geometry, low-slung aluminum or carbon frames, and 29” wheels, the Alpine Trail is here to conquer all singletrack in its path.
Specification
FRAME Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
FORK RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Compression and Rebound Adjustment, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset
SHOCK Rock Shox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount
RIMS Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specifc, Tubeless Compatible
HUB REAR Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body
HUB FRONT Shimano HF-MT410B, 110x15mm, Centerlock
SPOKES 14g Black Stainless Steel
TIRES Vee Tire Flow Snap, 29x2.6”, Top 40 Compound, Enduro Core, 72 TPI, Tubeless Compatible
DERAILLEUR REAR Shimano Deore, 12-Speed, SGS
SHIFT LEVER Shimano Deore, 12-Speed, SL-6100-IR
CRANKSET FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
BOTTOM BRACKET Mego EXO 73mm BSA
CHAIN KMC X-12 Silver and Black
CASSETTE Shimano, Deore M6100 12-Speed, 10-51T
BRAKES FRONT Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
BRAKES REAR Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
BRAKE LEVERS Shimano BL-M4100, I-Spec EV Compatible
HANDLEBAR Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM Marin 3D Forged Alloy, 35mm
GRIPS Marin Single Clamp Locking
HEADSET FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
SADDLE Marin Speed Concept
EXTRAS Bolt-On Thru-Axle
You can find more information about the Alpine Trail 7 HERE
