Bombtrack Arise SG complete bike
An addition to the Bombtrack fleet arrives in the form of the Arise SG. This bike features drop bars to give you a racier feel than its flatbar brethren. The Microshift Advent X rear derailleur and 1x10 drivetrain provide stability and an extra sprocket in the rear wheel.
Size-matched wheels ensure the perfect fit, with 650B wheels for sizes XS and S or 700C for M and up. Staying true to its racy character, the Arise SG is equipped with WTB tubeless wheels that are ready to go should you decide to race, while the internal light cable routing in the fork maintains the bike's versatility.
With its fast wheels, wide tires and handlebars with decent flare, it's happy on a variety of surfaces and ready for anything from commuting to touring. What's more, the frame, in custom paint, can be further modified with luggage racks and mudguards.
Features of the Bombtrack Arise SG
- XS and S size with 650B wheels
- Conified Crmo steel frame
- Tire clearance: XS - S 650B x 42c / M - XL 700c x 42c
- Internal light cable routing
- Adjustable dropouts
- Mounts for rear rack and mudguards
- Tubeless ready
Color 1 | Glossy Cobalt Green |
Color 2 | - |
Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |

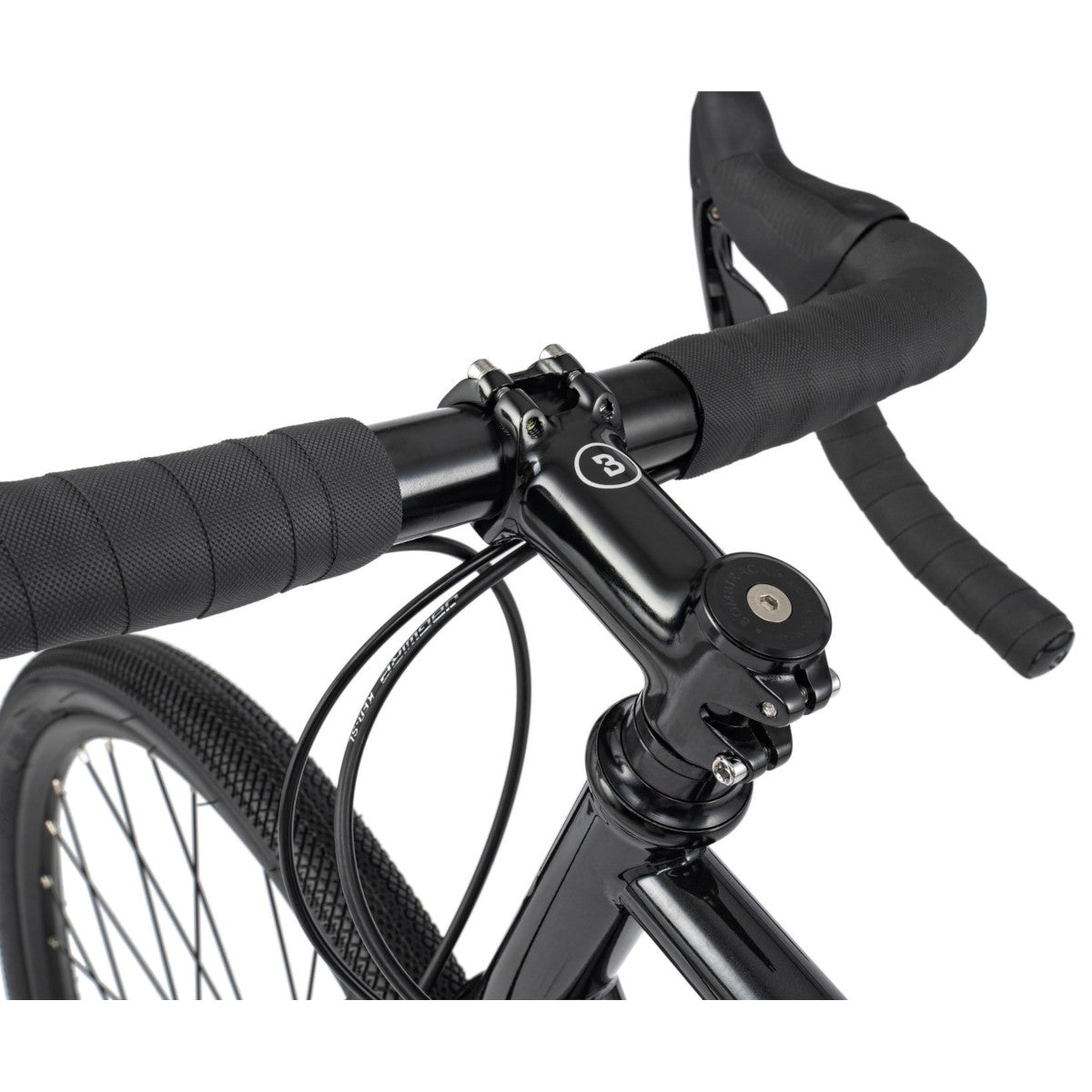

Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
Grips | BOMBTRACK COMMAND bar tape |
Stem | BOMBTRACK ROAM forged aluminium stem, -7° |
Headset | NECO H282 sealed external aheadset, 1.1/8'' |
Levers | MICROSHIFT ADVENT X SB-M100dual control lever mechanic |
Shifter | MICROSHIFT ADVENT X SB-M100 dual control lever 1 x 10 |
Brakes | TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors |

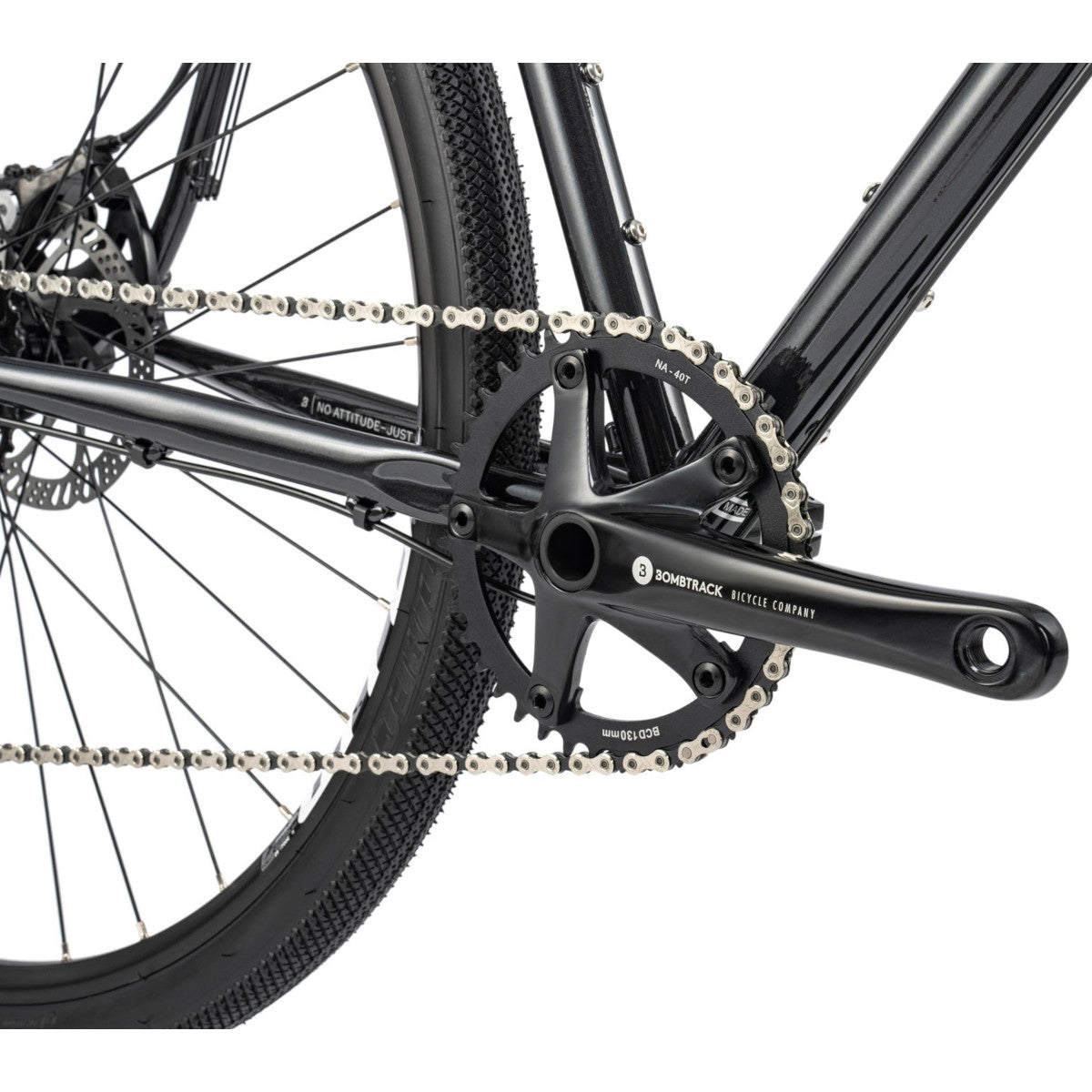

Crankset | BOMBTRACK TAF19 aluminium crank, 24 mm spindle |
BB | BSA sealed BB, external cups |
Pedals | WELLGO B109N flat pedal |
Chain | KMC X10 chain, 1/2'' x 11/128'', 114L |
Chainring | BOMBTRACK RIDGE aluminium chainring, narrow-wide, 40 T |
Cassette | MICROSHIFT ADVENT X CS-H104 10-speed, 11 - 48 T |
Front derailleur | - |
Rear derailleur | Microshift ADVENT RD-M6205GM wide range, clutch |
Front hub | BOMBTRACK ARC sealed hub, 6-bolt disc |
Rear hub | BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
Through axle | 12 x 100 mm / 12 x 142 mm |
Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |
Saddle | BOMBTRACK FUZZ |
Seat post | BOMBTRACK BEECH 27.2 mm x 315 mm |
Seat clamp | BOMBTRACK ORIGIN 29.8 mm |
Front tire | XS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622 |
Rear tire | XS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622 |
Fender | - |
Rack | - |
Kickstand | - |
Light | - |
Weight | 12 kg (size M) |
Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
Maximum rider weight | 120 kg incl. luggage |
